Dylux D-B103 1.5 Cu. Ft. 12/24V DC Ultra-Compact Built-In RV Refrigerator & Freezer – Reversible Door

    Dylux D-B103 1.5 Cu. Ft. 12/24V DC Ultra-Compact Built-In RV Refrigerator & Freezer – Reversible Door

      Product form

      SKU: D-B103

      $649.99

      • 1.5 Cu. Ft. Dual-Compartment Storage
      • 12/24V DC Compressor Cooling
      • 3-Level Battery Protection
      • Ultra-Compact Built-In Design
      • RV Tilt Operation Support
      Contact Us
        • Free Fast Shipping
        • Hassle-Free Warranty
        • 1-877-55-DYLUX (1-877-553-9589)

        Features

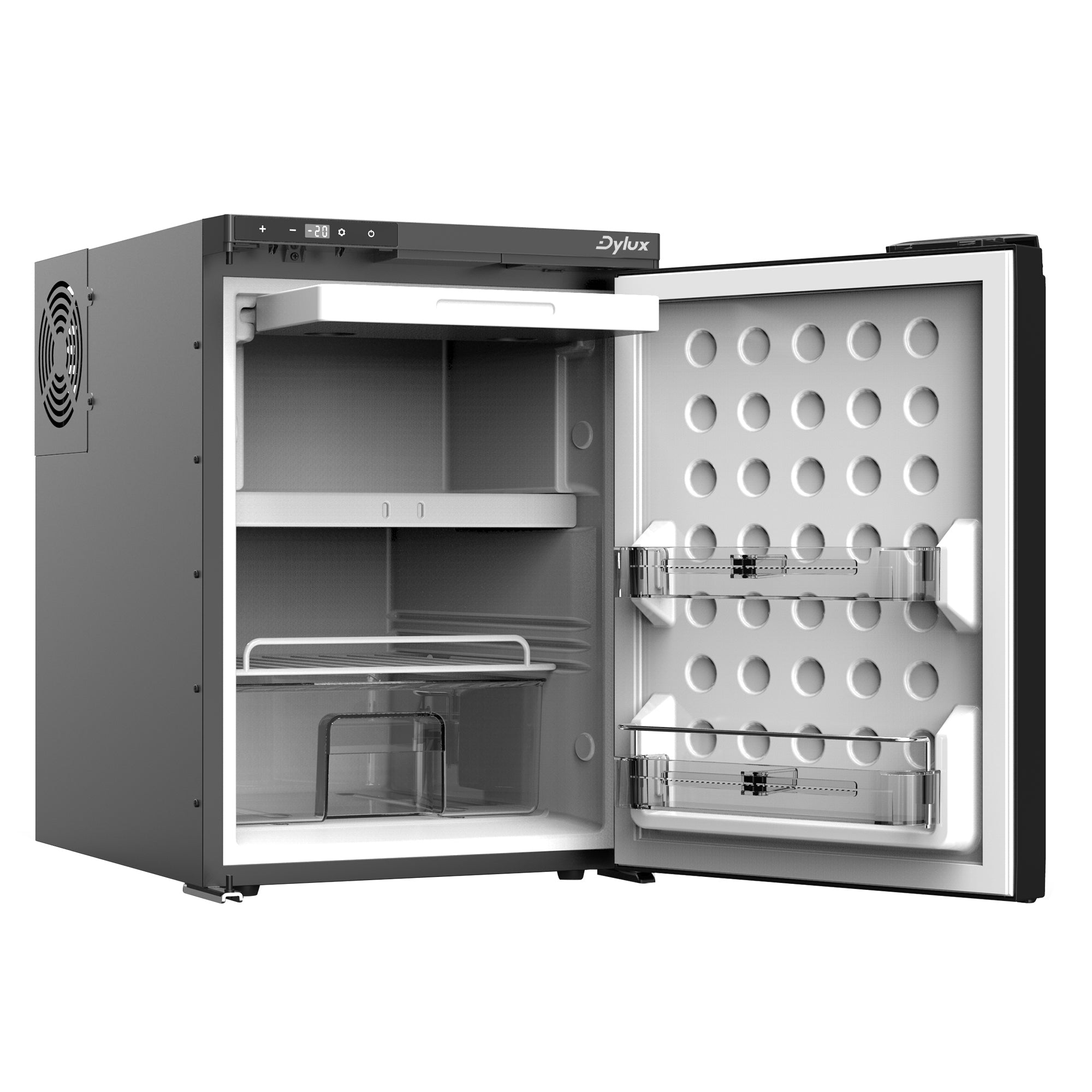

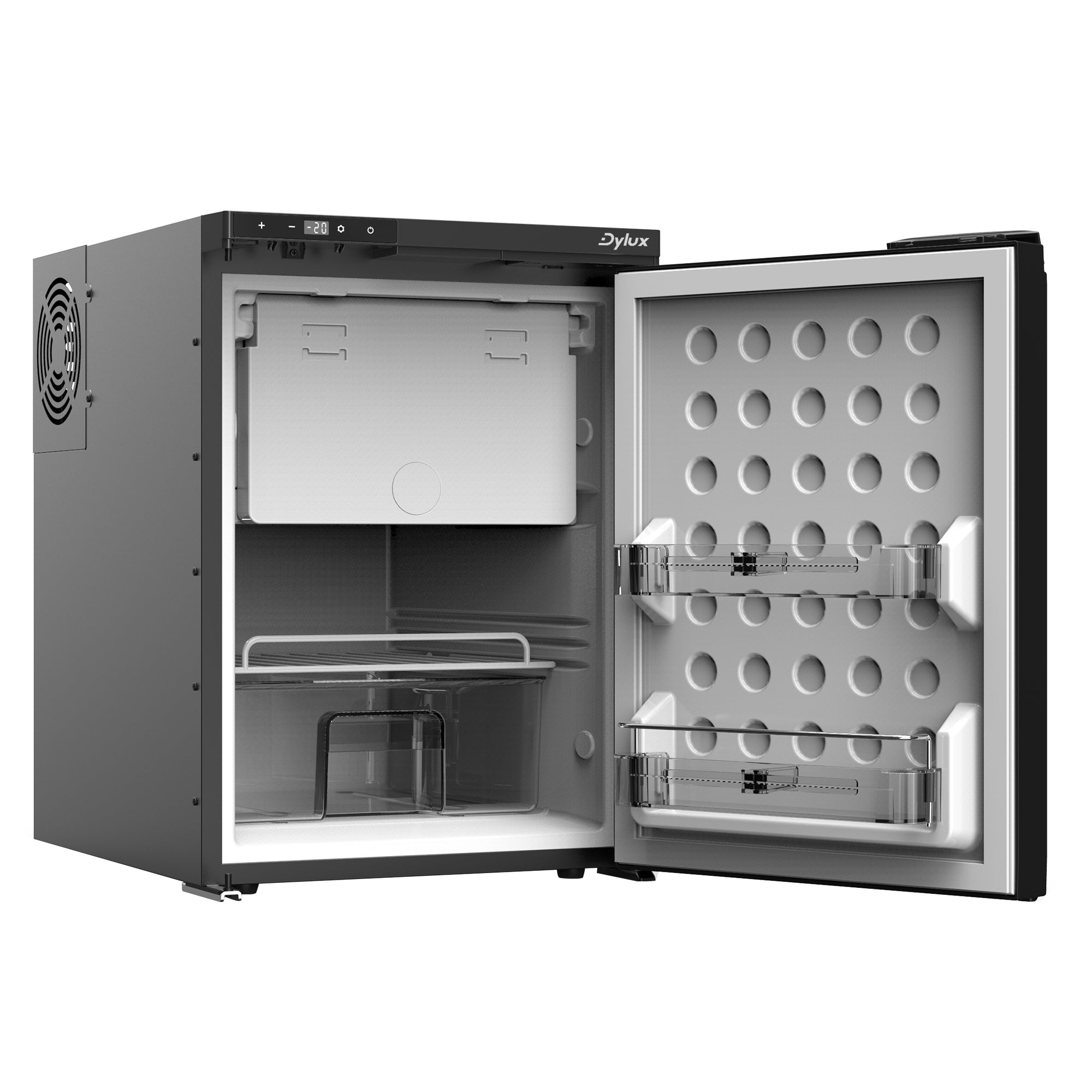

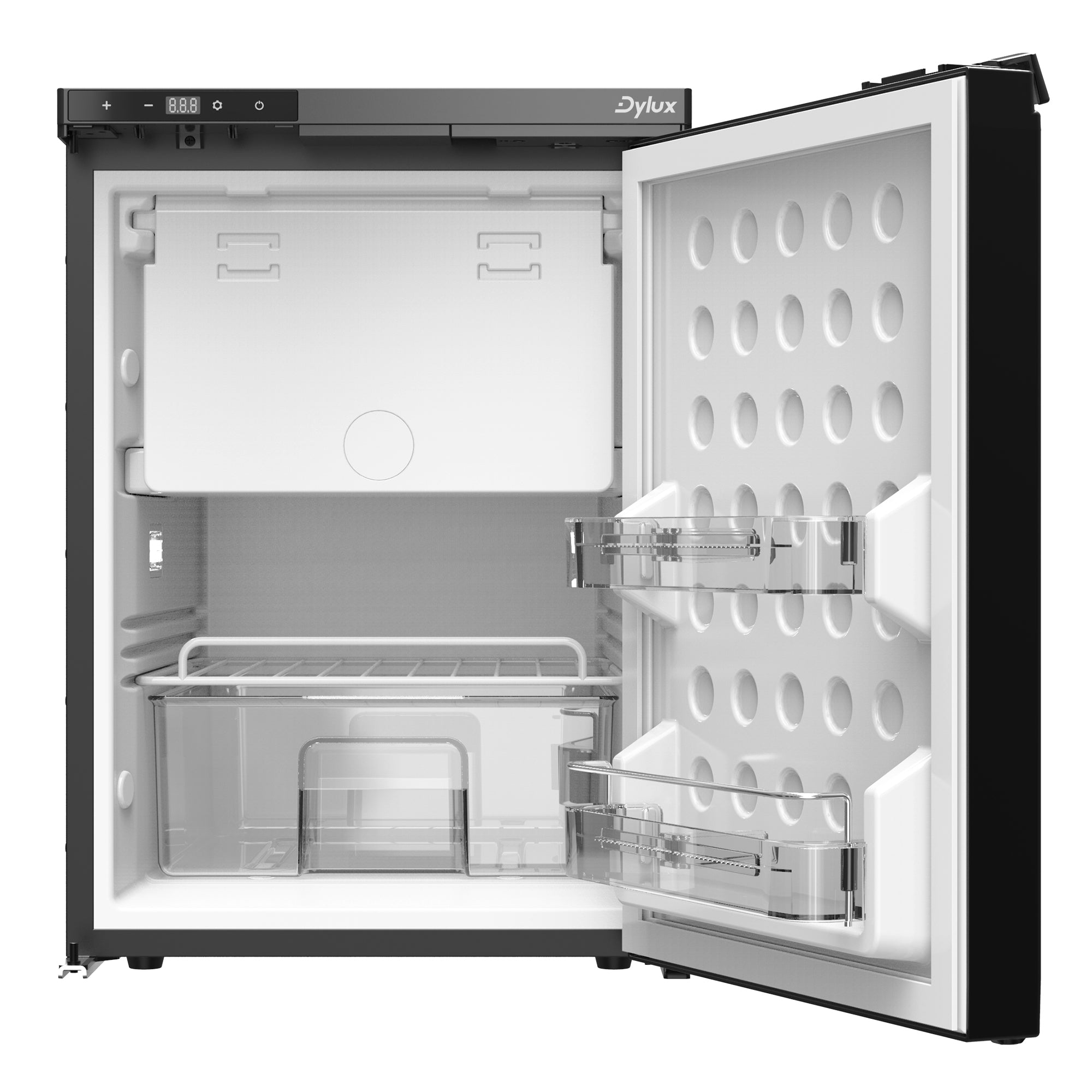

        Space-Saving Dual-Compartment Storage

        • Dedicated 1.2 cu. ft. refrigerator and 0.3 cu. ft. freezer compartments.
        • Removable wire shelf, door bins, and crisper drawer maximize storage flexibility.

        Shared Temperature Control

        • Shared LED control system provides temperature control for both compartments.
        • Operating temperature ranges: 32–46°F for the refrigerator and -4–10°F for the freezer.

        Reliable DC Cooling & Protection

        • High-efficiency DC compressor supports both 12V and 24V DC systems.
        • Three selectable battery protection levels help prevent excessive battery discharge.

        RV-Ready Tilt Operation

        • Supports continuous operation at tilt angles below 5° and short-term use below 45°.
        • Reversible door and optional mounting frames accommodate different cabinet configurations.

        Specifications

        Model D-B103
        Product Type Built-In Refrigerator & Freezer
        Total Capacity 1.5 cu. ft.
        Refrigerator Capacity 1.2 cu. ft.
        Freezer Capacity 0.3 cu. ft.
        Refrigerator Temperature Range 32–46°F
        Freezer Temperature Range -4–10°F
        Temperature Control LED Display, Shared Control
        Rated Input Voltage 12/24V DC
        Rated Power 60W
        Cooling System DC Compressor
        Defrost Type Manual Defrost
        Battery Protection 3 Selectable Levels (Low / Medium / High)
        Noise Level ≤45 dB
        Operating Tilt Limits <5° (Continuous) / <45° (Short-Term)
        Product Dimensions (W × D × H) 15.2 × 21.2 × 21.0 in
        Minimum Installation Opening (W × D × H) 15.6 × 21.4 × 22.6 in
        Net Weight 33.5 lb
        Certification SGS
