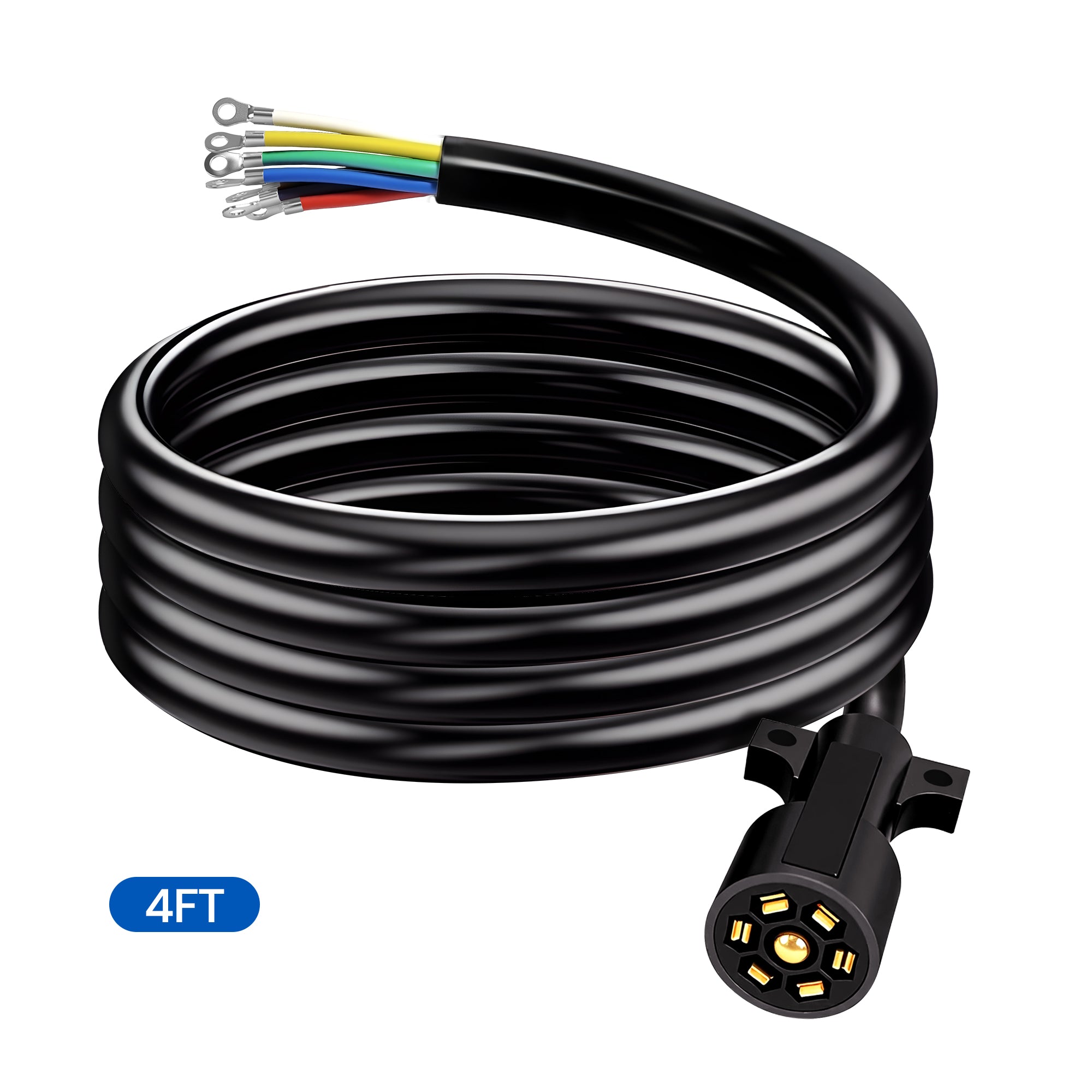

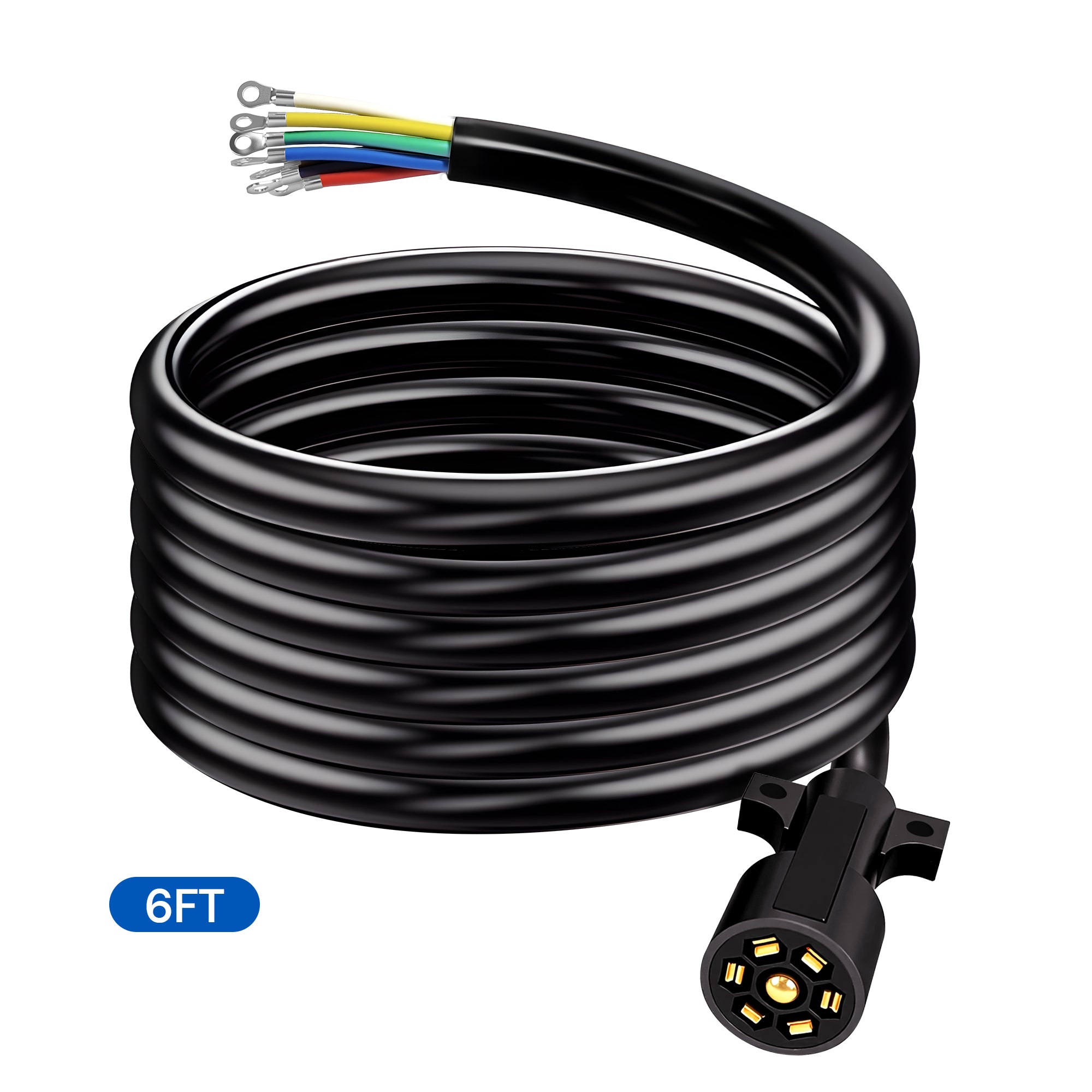

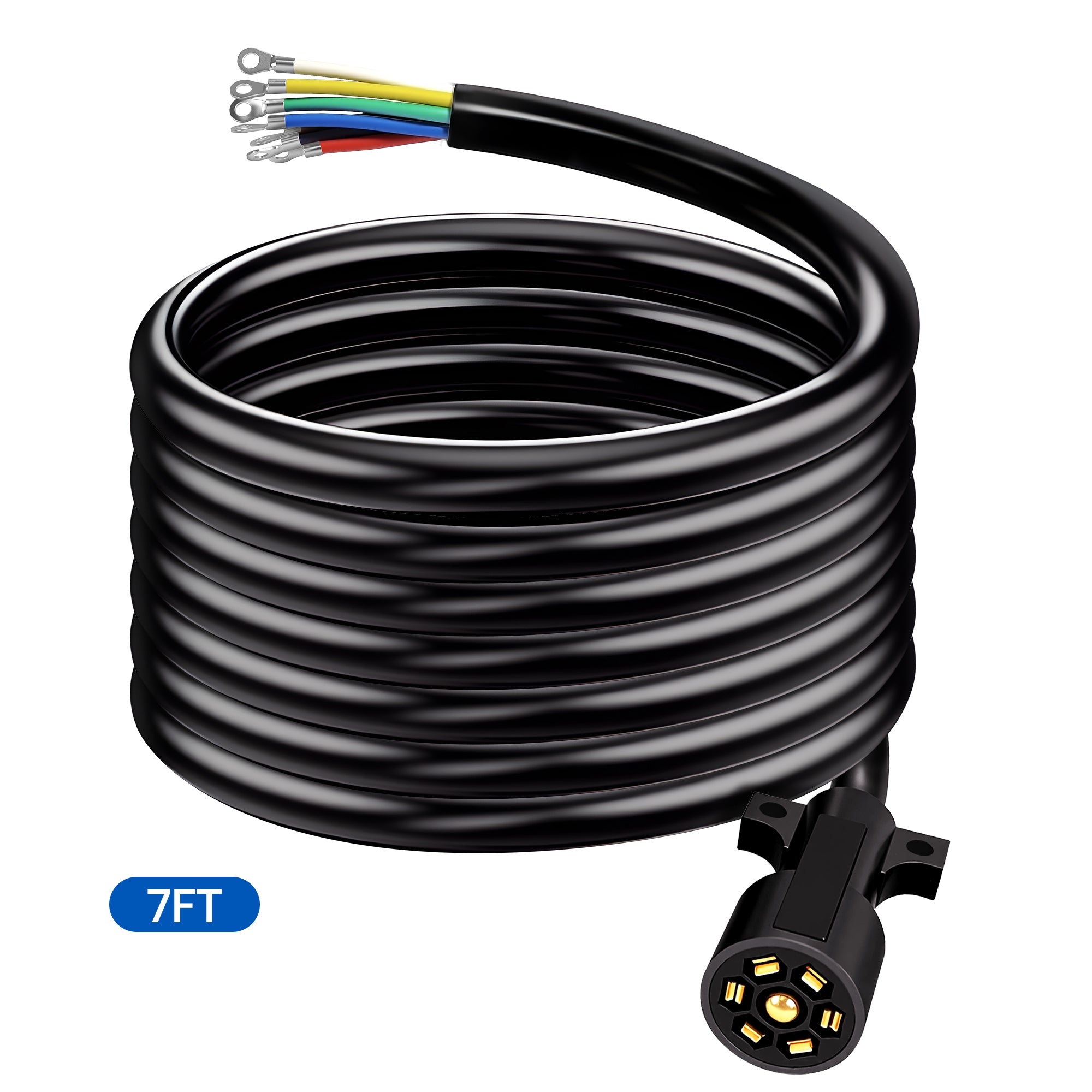

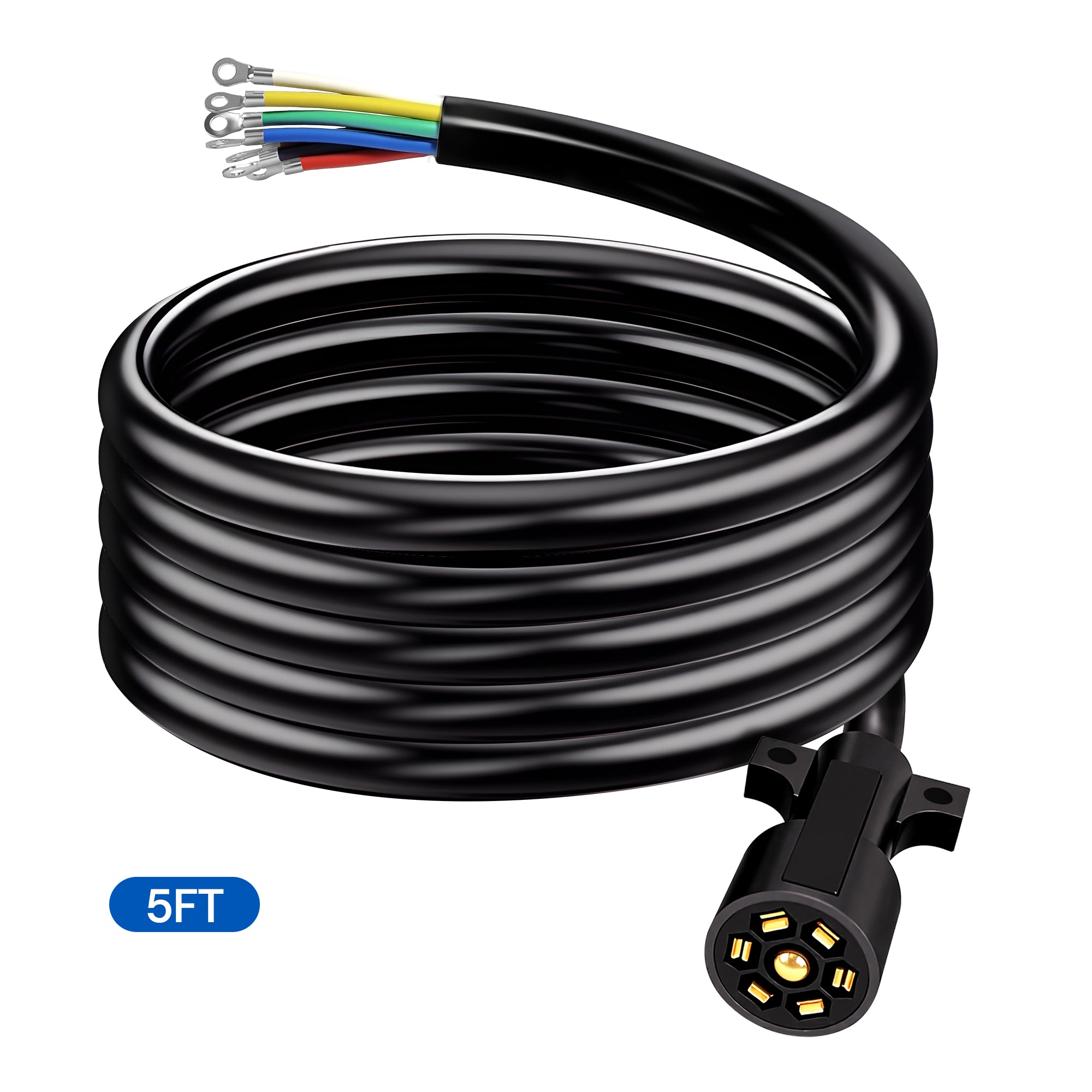

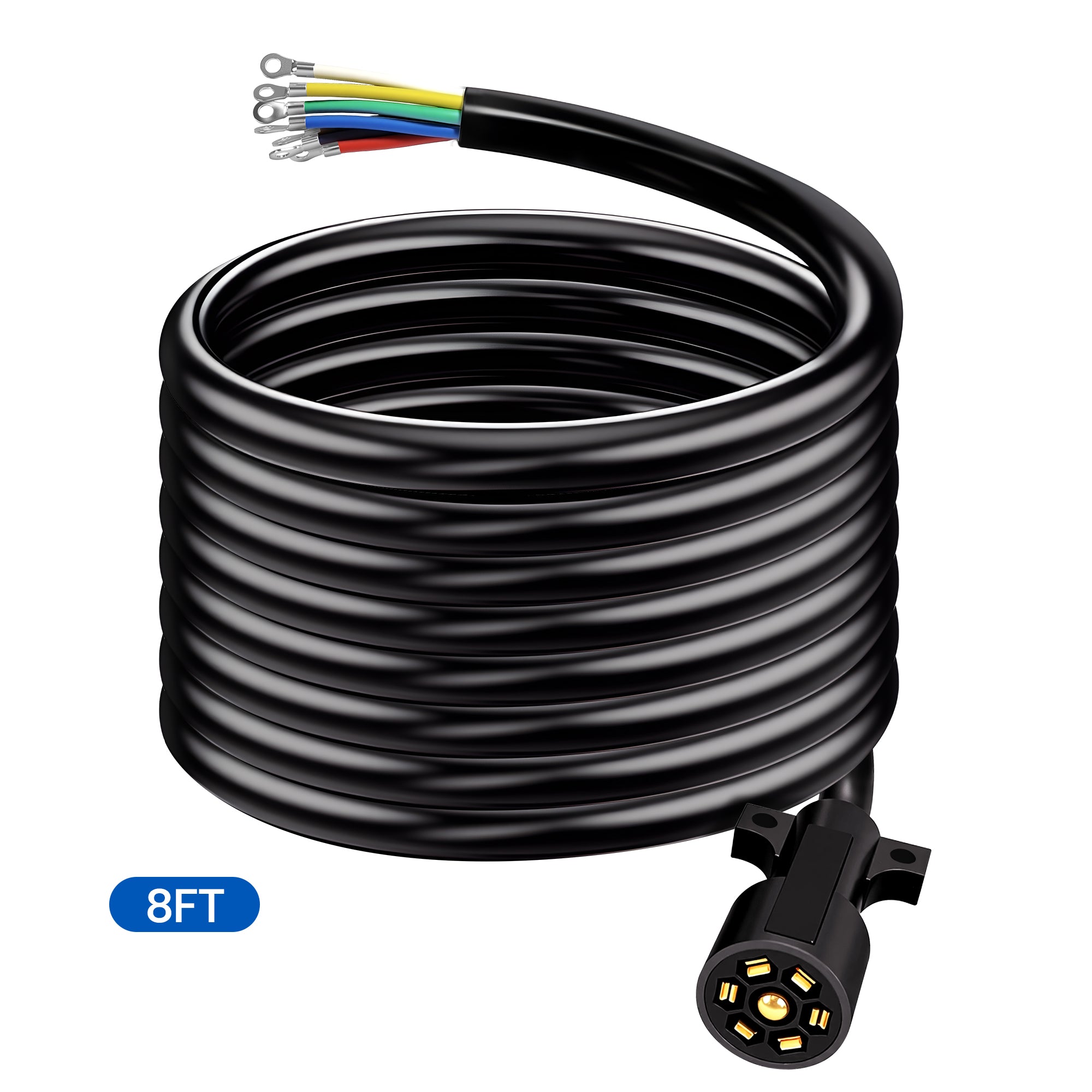

Dylux Heavy-Duty 7-Way Inline Trailer Cord with Terminal Rings | SAE Trailer Wiring Harness (3FT, 4FT, 5FT, 6FT, 7FT, 8FT)

    Dylux Heavy-Duty 7-Way Inline Trailer Cord with Terminal Rings | SAE Trailer Wiring Harness (3FT, 4FT, 5FT, 6FT, 7FT, 8FT)

      Product form

      SKU: D-R7C3R

      $54.99

      • Color-coded wires simplify installation and troubleshooting
      • Pure copper conductors ensure efficient, reliable power
      • Flexible, weather-resistant PVC jacket for durable use
      • 7-way plug-and-play design fits standard sockets
      Contact Us
        • Free Fast Shipping
        • Hassle-Free Warranty
        • 1-877-55-DYLUX (1-877-553-9589)

        Size chart

        Features

        • Color-Coded for Easy Wiring – Seven distinct colors make installation and troubleshooting simple.
        • High-Conductivity Copper – Pure copper conductors deliver efficient, low-loss power transfer.
        • Flexible & Weather-Resistant – Durable PVC jacket resists UV, abrasion, and harsh outdoor conditions.
        • Heavy-Duty 7-Way Plug – Molded copper-blade connector ensures a secure, stable trailer connection.
        • Plug-and-Play Setup – Pre-wired design with tight-fit dual-blade prongs for quick and reliable hookup.
        • Terminal Ring Ends – Pre-mounted ring terminals ensure quick and secure connections.
        • Wide Compatibility – Works with all standard 7-way sockets, making it perfect for RVs, travel trailers, cargo trailers, and boat trailers.

        Specifications

        Connector Type 7-Way RV Blade Connector
        Rated Voltage 12V DC
        Conductor Material High-Purity Copper
        Jacket Material Flexible, Weather-Resistant PVC
        Applications Trailers, RVs, Boat Trailers, Cargo & Utility Trailers, Food Trucks, and more

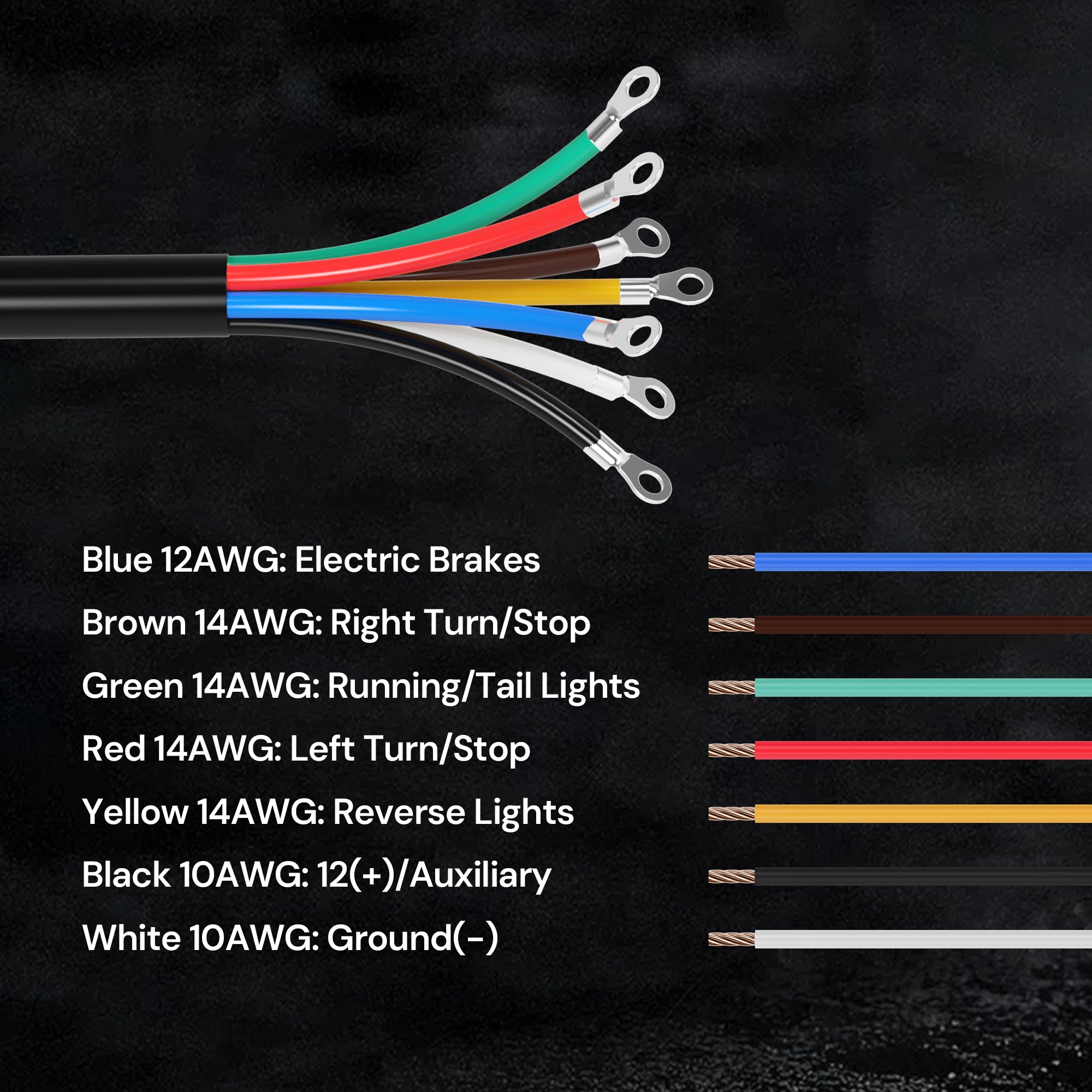

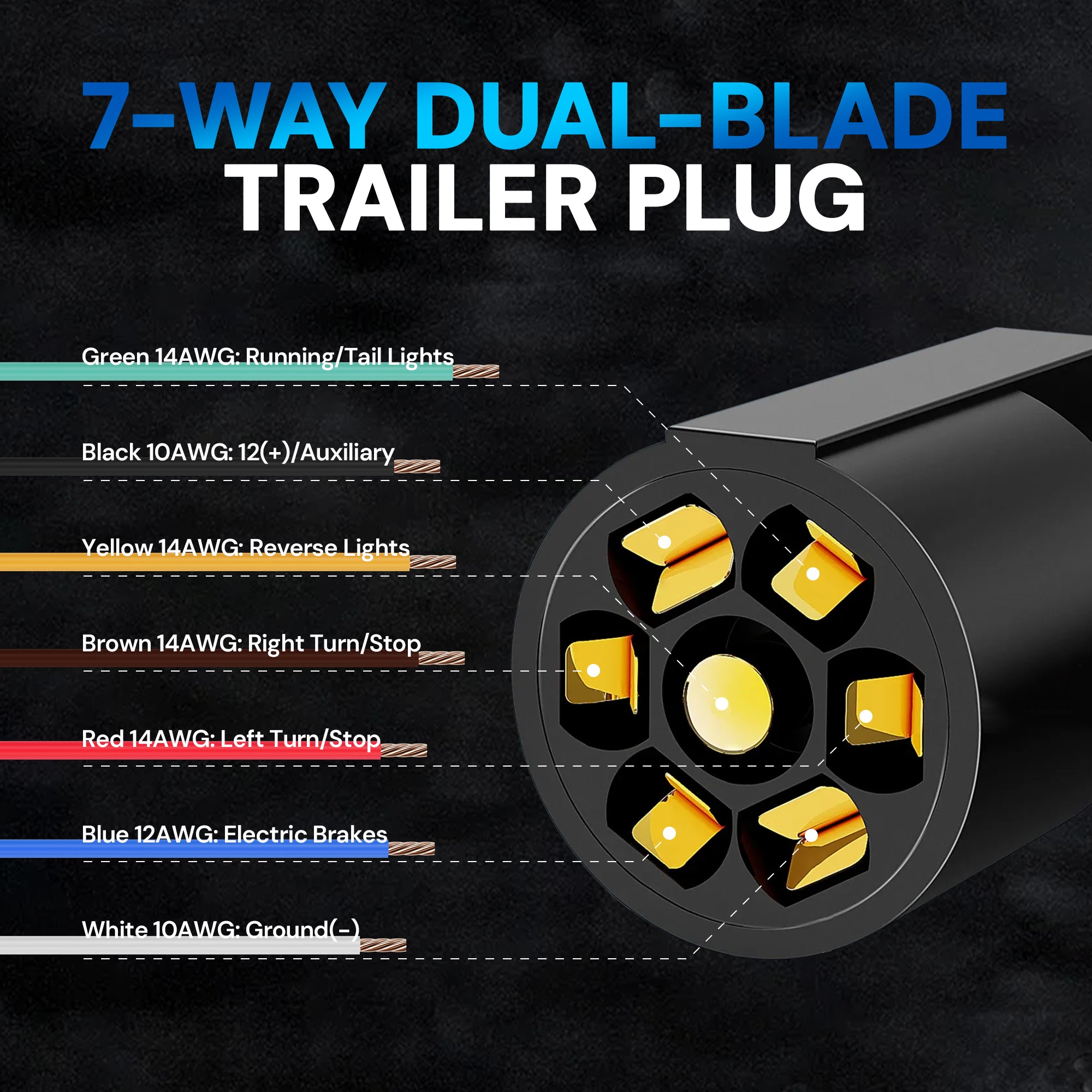

        Wire Configuration
        Black Wire 12V (+) / Auxiliary (10 AWG)
        White Wire Ground (-) (10 AWG)
        Blue Wire Electric Brakes (12 AWG)
        Brown Wire Right Turn / Stop (14 AWG)
        Red Wire Left Turn / Stop (14 AWG)
        Green Wire Running / Tail Lights (14 AWG)
        Yellow Wire Reverse Lights (14 AWG)
