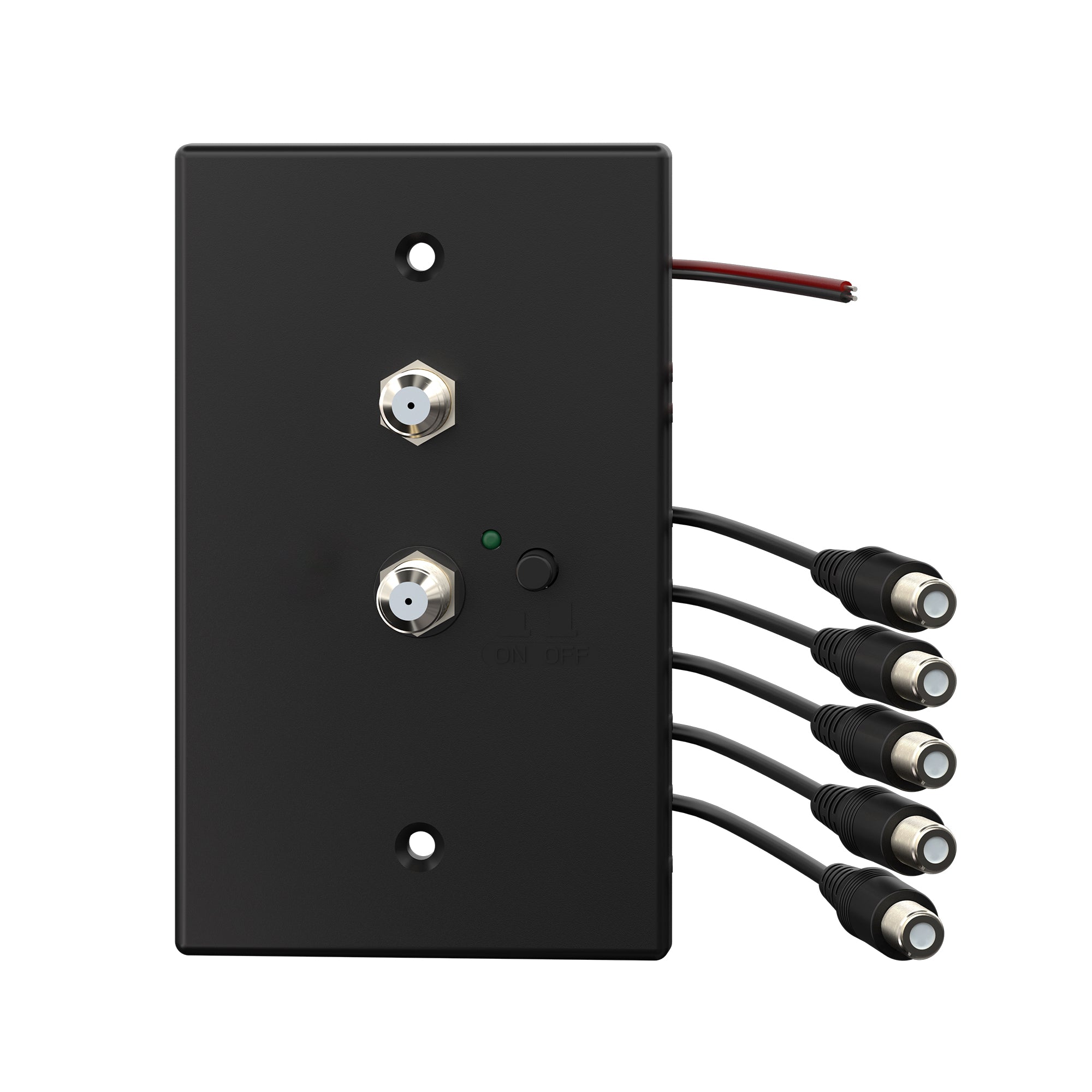

Dylux Wall-Mount TV Signal Distributor – 4 TV Outputs, Dual Input Switch, Built-in 12V Power

    Dylux Wall-Mount TV Signal Distributor – 4 TV Outputs, Dual Input Switch, Built-in 12V Power

      Product form

      SKU: D-WP4T

      $29.99

      Quantity
      Contact Us
        • Free Fast Shipping
        • Hassle-Free Warranty
        • 1-877-55-DYLUX (1-877-553-9589)

        Size chart

        Features

        • Dual Input Signal Switching – Easily switch between terrestrial and cable TV signals.
        • ON/OFF Signal Control – Toggle between terrestrial antenna and cable TV via the ON/OFF switch.
        • Four TV Outputs – Connect up to four TVs at once for multi-room viewing.
        • Satellite Pass-Through – Direct F-type connector ensures uninterrupted satellite signal transmission.
        • 12V/50mA DC Output – Powers TV antennas directly without external adapters.
        • Wall-Mount Compact Design – Saves space with a clean, integrated installation.
        • Versatile Applications – Ideal for RVs, boats, and home entertainment systems.

        Specifications

        Output Ports 4 × TV Outputs
        Input Ports 1 × Terrestrial Antenna (Terr. TV) , 1 × Cable TV
        Power Output DC 12V/50mA(Nor.)
        Signal Switching Manual ON/OFF (Terrestrial/Cable TV)
        Connector Type F-Type (Coaxial)
        ANT-OUT Band Range 47-65, 174-750
        CABLE-OUT Band Range 47-750
        Mounting Wall-Mounted (Fixed Installation)

        Downloads

        Download the documents here:

         Dylux D-WP4T Specification

        Customer Support

        If you have any questions or need assistance, feel free to reach out to us. We're happy to help!

        • Phone: 1-877-553-9589
        • Email: support@dylux.com
        • Hours: Mon-Fri, 9 AM - 5 PM (PST)

        Testimonials

        • David R.

          David R.


          The standard size made replacement easy. Once mounted, it sits flush against the wall and feels sturdy, unlike cheaper plates, which can feel flimsy.

        • James T.

          James T.


          I installed this wall plate in just a few minutes. Everything lined up properly, and it fit the outlet without any trimming or adjustments.

        • Paul G.

          Paul G.


          Simple design, solid construction, and an easy install. It does exactly what it’s supposed to and feels made to last.
